What is The Horizontal and Vertical Flame Chamber GT-MC35F
Apr 14, 2026
What is The Horizontal and Vertical Flame Chamber GT-MC35F
Horizontal and Vertical Flame Test Chamber is a device professionally designed to test the combustion performance and fire resistance of related materials, mainly used in building materials, wires and cables, furniture, automotive interior and other fields, mainly to assess the material’s ability for resist to the spread of fire in potential fire risk.
We will outline the definition of horizontal/vertical flame test chambers and their basic applications. Understanding these details will help you determine whether a horizontal/vertical flame test chamber meets your requirements.
What is the Horizontal and Vertical Flame Chamber GT-MC35F

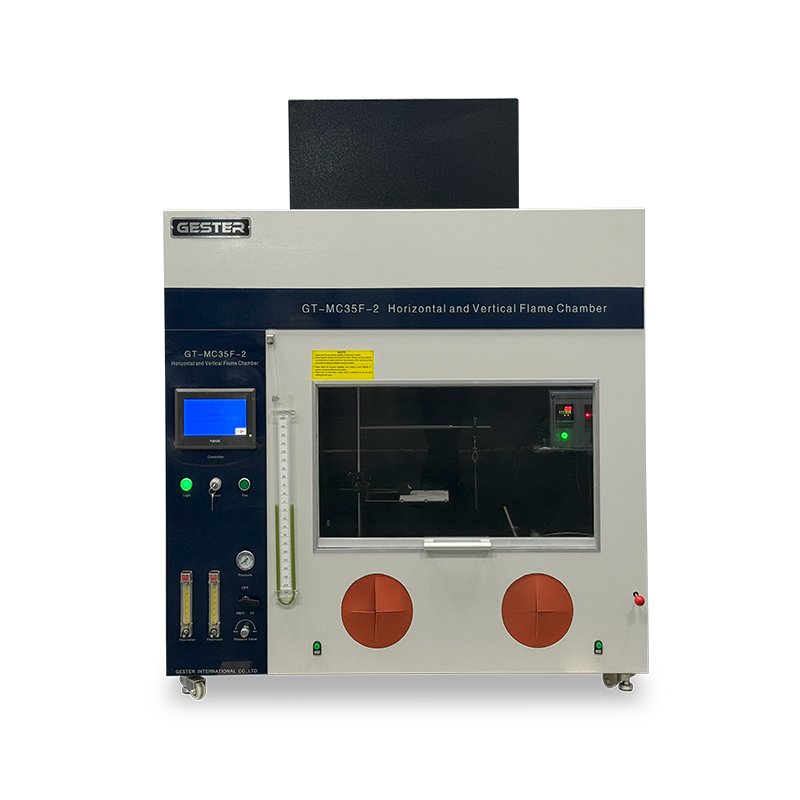

The Horizontal and Vertical Flame Chamber GT‑MC35F is a newly released flammability test instrument designed for precise horizontal and vertical flame testing of plastics, films, fabrics, and various component materials. It is widely recognized as a professional Flammability Test Chamber that supports multiple international test standards. New test circuit, stable performance, reliable, simple and easy to operate. wide range of parameter adjustment.
Applicable Standards
This chamber supports a wide range of flammability test standards, including:
UL 94
IEC 60695-11-3, IEC 60695-11-4
ISO 9772.3/6722
ASTM D635/3801/4804/4986
Its versatle design makes it an essential tool for ensuring material compliance and safety in manufacturing processes.
Advantages at a Glance
1. It is using of automobile manufacturing using CNC machining centers 2mm cold plate shape, good looks, high-grade.
2. Outdoor grade powder coating technology, high texture, no discoloration.
3. Import control components, safe and reliable.
4. It is according for ASTM D5025 dedicated burner , Easy for adjust flame height and with stable.
Comparison of the Horizontal Vertical Flame Chamber GT-MC35F with Other Flammability Test Methods
In material selection and quality assurance, the horizontal and vertical flame test is often compared with other flammability assessments, such as the glow-wire test or the cone calorimeter. A knowledge of the differences could help you select the most appropriate test for your material.
Horizontal/Vertical Chamber vs. Glow-Wire Tester
When discussing methods that simulate fire hazards from electrical faults, the glow-wire test is a key alternative. The horizontal/vertical chamber exposes a material to a small, calibrated flame from a gas burner. The glow-wire test, in contrast, uses an electrically heated wire (typically to 550°C to 960°C) to simulate a hot, stressed component.
In regard to applicability, the Horizontal Vertical Flame Chamber is best for materials where a direct flame is the likely ignition source (e.g., a burning component). The glow-wire test is preferred for parts that may be in contact with hot, but non-flaming, sources like a failing resistor.
With respect to the metrics measured, the flame chamber measures afterflame time, afterglow time, and burn rate. The glow-wire test measures the ignition temperature (GWIT) and the flammability index (GWFI).
Typical Applications
The GT‑MC35F Horizontal Vertical Flame Chamber is widely used across industries:
-
Plastics & Polymers: Test housings, components, films, sheets.
-
Electronics & Electrical: Plugs, connectors, appliance parts.
-
Automotive: Interior materials, wiring, trims.
-
Textiles & Foams: Fabrics, sponges, insulation.
-
Laboratories & Certification: R&D, quality control, third‑party testing.
Why Choose the GESTER ul94 Horizontal/Vertical Flame Chamber?
1. Compliant with the UL 94 standard, ASTM, ISO, and IEC test methods
2. Performs ul94 horizontal/vertical flame chambertests with precision
3. Compact, easy-to-use design for both laboratory and industrial applications Advanced gas flow control and flame calibration for accurate resultsDurable, corrosion-resistant construction with enhanced safety features
4. High-precision flammability test chamber, delivering accurate andepeatable results for fire safety compliance and material testing
Conclusion
The Horizontal and Vertical Flame Chamber GT‑MC35F combines premium structural design, reliable imported parts, and compliance with global standards to provide stable, accurate, and repeatable flammability testing. Considering the structural design, the suite of standards it meets, and its precision components, the GT-MC35F Flammability Test Chamber provides an effective solution for material flammability testing.
