How to Enhance Office Furniture Quality Using BIFMA X5 Series Furniture Testing Equipment
Sep 09, 2025
How to Enhance Office Furniture Quality Using BIFMA X5 Series Furniture Testing Equipment
Although BIFMA standards are not legally enforceable (unless referenced in specific procurement specifications or local regulations), they have become the recognised industry benchmark in the North American market. Purchasing furniture compliant with BIFMA standards signifies that its quality, safety, and durability have undergone rigorous testing by independent third-party laboratories.
Overview of the BIFMA X5 Series Standards
BIFMA (Business and Institutional Furniture Manufacturers Association) is a standards organisation dedicated to the office furniture industry. The standards developed by BIFMA centre on the ANSI/BIFMA X5 series.
BIFMA X5 Series: Comprehensively specifies structural strength testing requirements for office furniture, including:
- Chairs must pass a 24-hour cyclic load test
- Drawers must withstand 200,000 pull-out cycles
- Chair castors must complete 300,000 rotation cycles
Common BIFMA X5 Series Standards and Testers
-
BIFMA X 5.1 - General-Purpose Office Chairs - Tests
-
BIFMA X 5.3 - Vertical Files - Tests
-
BIFMA X 5.4 - Lounge Seating - Tests
-
BIFMA X 5.5 - Desk/Table Products - Tests
-
BIFMA X 5.6 - Panel Systems - Tests
1. BIFMA X 5.1 - General-Purpose Office Chairs - Tests：This standard defines specific tests, laboratory equipment, conditions of test, and recommendedminimum levels to be used in the test and evaluation of the performance, durability.

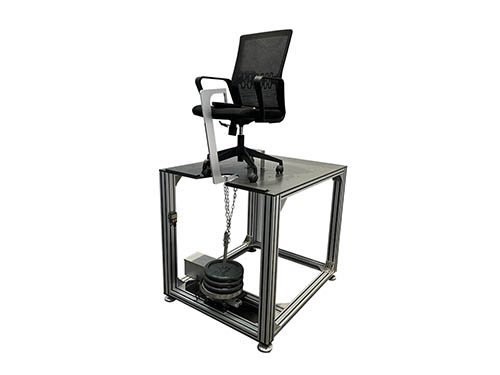

Example Tester: Chair Front Stability Testing Machine GT-LB06A
Chair Front Stability Testing Machine is used to test the forward stability of chairs.
Standards:
ANSI/BIFMA X5.1 - 2017 Section 11.4 , EN 1335-3-2009 Section 7.1.2, 7.1.3,
EN1022-17 Section6.3.1,6.3.3, 6.3.4, 6.3.5, 6.3.6, EN 16139 Section 4.3.2
2. BIFMA X 5.3 - Vertical Files - Tests: Specifies performance testing for vertical filing cabinets.

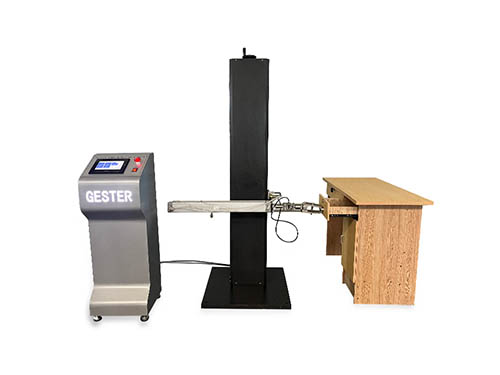

Example Tester: Drawer Durability& Strength Testing Machine GT-LD01C
Drawer Durability Strength Testing Machine is designed to test the durability and strength of drawers, desks, cabinets and wardrobe.
Complies with the following standards:
BIFMA X5.3, BIFMA X5.5, GB/T 10357.5, ISO 7170
3. BIFMA X 5.4 - Lounge Seating - Tests: This standard provides manufacturers, specifiers and users with a common basis for evaluating the safety, durability and structural adequacy of commercial and institutional lounge seating.

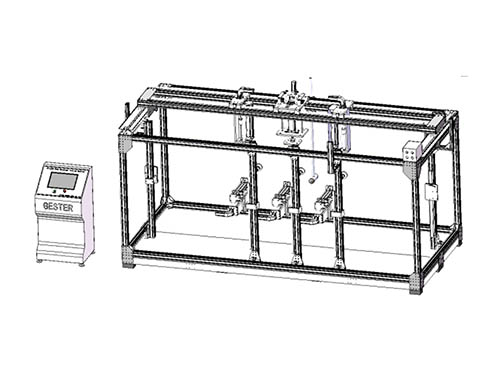

Example Tester: BIFMA X5.4 Chair Seating and Back Testing Machine GT-LB04-3C
The chair tester tests the strength and durability of the seats and backrests by simulating the routine use loading of the seat.
Complies with the following standards:
BIFMA X5.4-2020 Section 5,6,7,8,9,10,11,12,14,15,16,20,21.3,21.4,21.6,22,23,24,25,26
4. BIFMA X 5.5 - Desk/Table Products - Tests: It provides test methods and performance requirements for desk/table products.

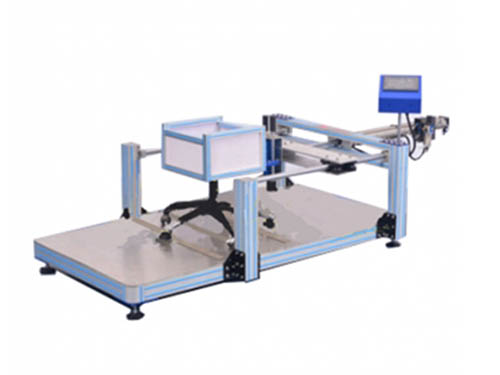

Example Tester: Desks Casters Durability Testing Machine GT-LD03B
The BIFMA Desks Casters Durability Testing Machine GT-LD03B is applies to tables which have castors fitted to all legs/supports, used to evaluate the castors and table frame ability of withstanding fatigue stresses and wear caused by moving the table back and forth.
Complies with the following standards:
BIFMA X5.5-2014 Section18
5. BIFMA X 5.6 - Panel Systems - Tests: ANSI/BIFMA X 5.6 is a testing standard for office furniture panel systems developed by the Business and Institutional Furniture Manufacturers Association (BIFMA), providing a basis for evaluating the safety, durability, and structural performance of panel system products.
The BIFMA X5 Series provides manufacturers with a competitive edge in the marketplace. Products bearing this certification often achieve greater recognition and stronger sales performance. This is because an increasing number of businesses and consumers favour selecting office furniture that has undergone rigorous certification, ensuring reliability in both safety and user experience.
