Office Chair Performance – Tested by BIFMA X5.1 Testing Method

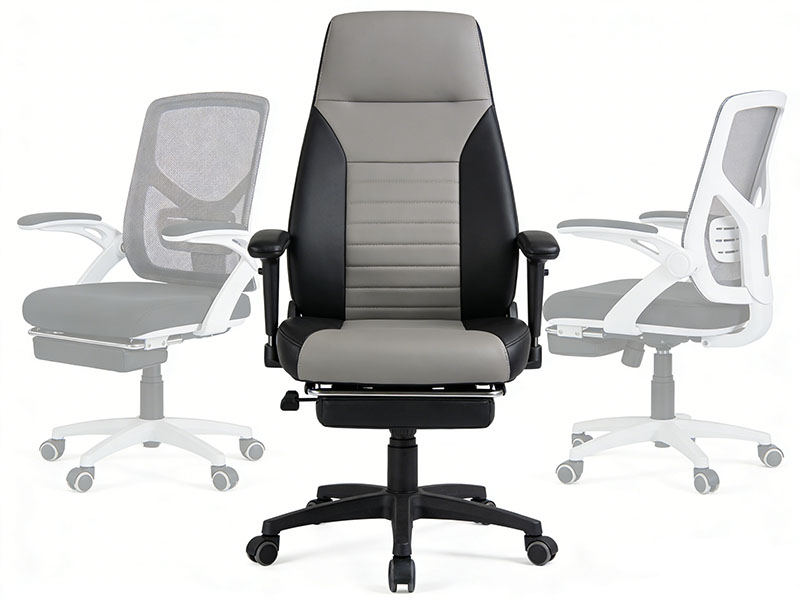

Office chairs are the core ergonomic furniture in modern office scenarios, and their mechanical performance directly determines the safety, durability and user experience of use. As the authoritative international standard formulated by the Business and Institutional Furniture Manufacturers Association, BIFMA X5.1 has become the core evaluation criterion for the mechanical performance of office chairs, specifying strict test requirements for stability, load-bearing capacity, impact resistance and durability of office chairs.

BIFMA X5.1 is the most widely recognized international standard for office chair performance testing in the world, focusing on the mechanical safety and durability of office chairs, which is the key basis for office chair product certification, quality inspection and market access.

This standard provides a common basis for manufacturers, specifiers and users to evaluate the safety, durability and structural adequacy of general purpose office chairs. These office chairs are normally used in office environments and include chair styles often described as executive, office/secretary, guest chairs, folding chairs, tablet chairs and stools.

• Horizontal static load test: Verify the lateral stability of the office chair to prevent tipping during use.
• Vertical static load test: Evaluate the load-bearing capacity of the seat surface, backrest and other key parts of the office chair.
• Impact test: Detect the impact resistance of the office chair when subjected to sudden external force
• Durability test: Test the service life of the office chair under repeated use conditions.

Applications of GT-LA10 BIFMA X5.1 Furniture Universal Testing Machine

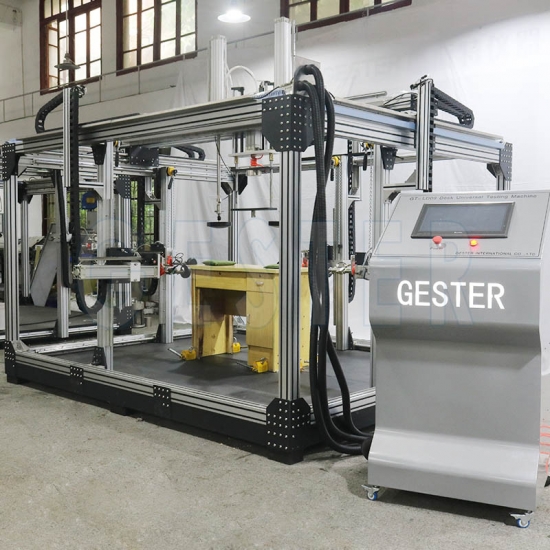

Features of GT-LA10 Furniture Universal Testing Machine

• The machine adopts frame structure design. The frame is made of high quality industrial aluminum, beautiful and generous.
• The top frame of GT-LA10D is equipped with a lifting structure, and the height of the frame can be adjusted according to the height of the sample.
• Up to 7 sets of loading cylinder installed, 4 sets in horizontal cylinders (2 sets in the frame, and the other 2 sets are independent split designs, which can be freely moved inside and outside the frame to adapt to different testing needs), 2 sets of vertical cylinder and 1 set of impact cylinder on top frame. All cylinders can be adjusted up and down, frontward and backward to cover all mounting surfaces. The 7 sets of cylinders can execute joint or independent operation.
• The bottom fixed block is free to adjust the position to accommodate different specifications of the sample.
• PLC +15 inch color touch screen to control the actions of the machine; the operation is intuitive and simple.
• GESTER independent research and development unique design, adopting servo motor +cylinder drive mode way to greatly meet the international standards of force accuracy and test speed double requirements; high precision force sensor sense the force value immediately; each load group adjusts the control individually; the loading force is stable and reliable.
• Removable loading pad, can easily change the different loading pad to meet the different test requirements.

GT-LA10 Furniture Universal Testing Machine’s Adaptability to BIFMA X5.1 Testing Requirements

The structural design and functional configuration of GT-LA10 Furniture Universal Testing Machine are highly compatible with the test rules of BIFMA X5.1, which can effectively solve the pain points of office chair testing under the standard:

• Multi-cylinder flexible adjustment: 7 sets of adjustable cylinders can cover all stress points of office chairs (seat surface, backrest, armrests, base, etc.), which is consistent with the multi-position force application requirements of BIFMA X5.1
• High precision force control: The servo motor + cylinder drive mode and high-precision force sensor ensure the accuracy of the test force value, meeting the strict force error requirements of BIFMA X5.1 international standard
• Customizable sample adaptation: Lifting top frame and adjustable bottom fixed block can adapt to office chairs of different sizes, heights and specifications, realizing one machine for multi-specification product testing
• Combined test execution: The joint operation function of each cylinder can simulate the actual stress state of the office chair in use, and the test results are more in line with the actual application scenarios required by BIFMA X5.1
